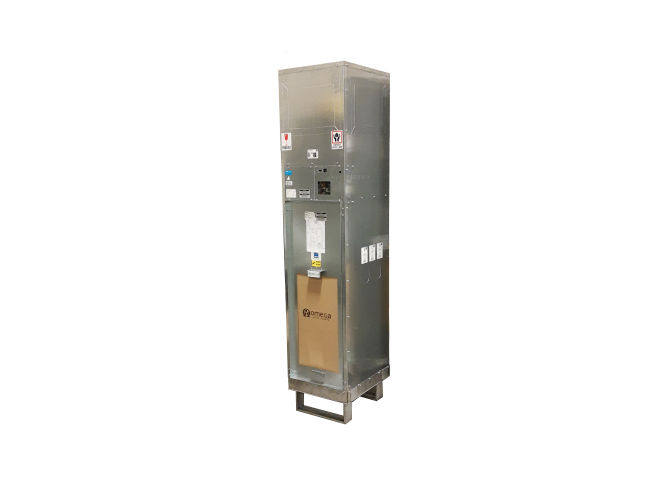

VSHP Series

Vertical Stack Heat Pump
Slide-Out Chassis

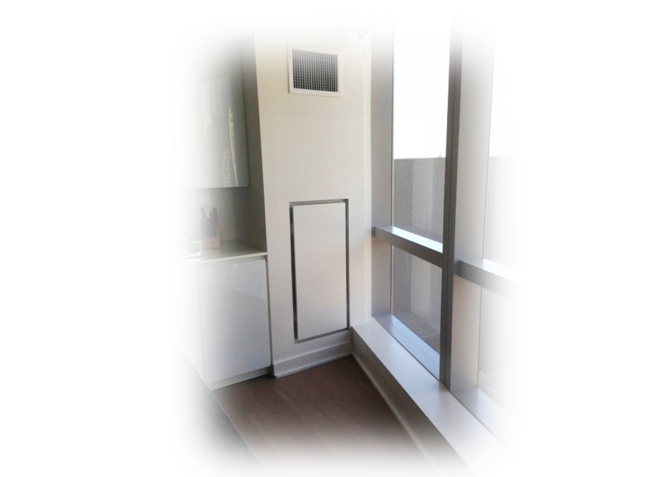

Aesthetic Install
Perimeter Return Air Door Option
Live Webpage Diagnostics and Data Logger

Current Documents:

Current Submittals:

Instructional Videos for Technicians:

Mechanical Specification & CAD:

Vertical Stack Heat Pump with Low GWP R-454B

The Omega Vertical Stack Heat Pump with Low GWP R-454B refrigerant system delivers reliable year round heating and cooling comfort with quiet and efficient operation in mind.

Each VSHP unit features high efficient compressors, heat exchangers, and EC fan motors. Powered by our advanced microprocessor controller for optimal safety and operability. All components are easily accessible through the front Return Air Panel allowing for quick and easy servicing and maintenance.

Features
  • Available in Standard Efficiency (SE) and High Efficiency (HE) chassis options.
  • Each VSHP unit comes standard with microprocessor controller with LED fault display, webpage diagnostics and data logging for quick start-up and troubleshooting.
  • The VSHP unit comes with a 3-speed direct drive EC fan and motor assembly providing an ample range of CFM delivery.
  • The VSHP cabinet is customizable for a variety of construction challenges. Installation flexibility and serviceability is optimized with a slide out chassis.
  • Units come standard with deluxe sound package including 1-inch insulation and double acoustically isolated chassis.
